7HP 3750m3/H Quietest Whole House Air Conditioner Constant Oxygen
Contact Person : Daisy
Phone Number : 86-13425728677
WhatsApp : +8613425728677
Minimum Order Quantity : | 1 unit | Price : | 1000USD-5000USD/unit |
---|---|---|---|
Packaging Details : | standard pallet packing | Delivery Time : | 30-60days |
Payment Terms : | L/C, T/T, Western Union | Supply Ability : | 50 Containers Per Month |
Place of Origin: | CHINA | Brand Name: | VENTECH |
---|---|---|---|
Certification: | CE | Model Number: | VH Series |
Detail Information |
|||
Product Name: | Vcare Full Intelligent Air Balance System | Cooling Capacity: | 18KW/20KW/28KW |
---|---|---|---|
Heating Capacity: | 16KW/18KW/20KW | Color: | White |
Application: | HVAC System | Business Type: | Manufacturer |
Payment Term: | T/T,L/C | Sample: | Yes(in Charge) |
High Light: | Water Pump Healthy Air Conditioner,18KW Healthy Air Conditioner |
Product Description

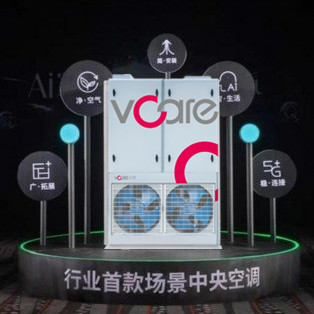

VENTECH(Vcare) central a/c water pump healthy air conditioner for wholehouse central A/C system
Advantage of VENTECH Whole-House Clean & Comfortable Home Air Conditioner
1. The connection distance between the air source and central air conditioner could be as long as 30 meters, where ducting could be 100 meters long. The long distance could avoid the equipment noise influence the normal living life. Moreover, the whole system is very quiet itself by using inverter air conditioner.
2. Applying high pressure VAV supply system with balancing air with constant air volume and oxygen supply. Temperature is adjustable by area, whenever you want and wherever you are.
3. High quality air terminal units wherever you want to install.
4. Apart from traditional air conditioner, VENTECH whole-house clean & comfortable home air conditioner supply air as natural air and without wind sensation, let people feel very comfortable.
5. This system could also solve the problem of air pollution like PM2.5 and other allergen.
6. Improve the quality of sleeping, create a healthy living style. It’s specially fit for the elderly and children with poor immunity.
Technical specification : | ||||||
Item | 12K 220V | 18K 220V | 24K 220V | |||
1 | Model name | FACTORY | Set | AS-12CR2SVE**03 | AS-18CR2SXA**02 | AS-24CR2SBB**01 |
Factory Outdoor | AS-12CR2SVE**03 | AS-18CR2SXA**02 | AS-24CR2SBB**01 | |||
Factory Indoor | AS-12CR2SVE**03 | AS-18CR2SXA**02 | AS-24CR2SBB**01 | |||
2 | mabe | Set | ||||
3 | ID | |||||
4 | OD | |||||
5 | Power supply | V/Ph/Hz | 220V~,60Hz,1P | 220V~,60Hz,1P | 220V~,60Hz,1P | |
6 | Cooling | Capacity | Btu/h | 12000 | 18000 | 24000 |
7 | Capacity | W | 3516.998827667 | 5275.498241501 | 7033.997655334 | |
8 | Input Power | W | 1134.51575086 | 1701.773626291 | 2269.031501721 | |
9 | Rated current | A | 5.3 | 7.9 | 10.280616275 | |
10 | SEER | Btu/h.W | 10.5772 | 10.5772 | 10.5772 | |
11 | EER | W/W | 3.1 | 3.1 | 3.1 | |
12 | Heating | Capacity | Btu/h | NA | NA | NA |
13 | Capacity | W | NA | NA | NA | |
14 | Input | W | NA | NA | NA | |
15 | Rated current | A | NA | NA | NA | |
16 | HSPF | Btu/h.W | NA | NA | NA | |
17 | COP | W/W | NA | NA | NA | |
18 | Moisture Removal | l/h | 1.5 | 1.8 | 2 | |
19 | Max. input consumption | W | 1500 | 2500 | 2850 | |
20 | Max. current | A | 8.1 | 14 | 16 | |
21 | Starting current | A | 28.5 | 38.5 | 61 | |
22 | Operation Control | RC | RC | RC | ||
36 | Indoor air flow (Hi/Mi/Lo) | m3/h | 580 | 950 | 1200 | |
37 | Indoor noise level (Hi/Mi/Lo) | dB(A) | 39/35 | 43/38 | 45/42 | |
67 | Outdoor noise level | dB(A) | 53 | 54 | 56 | |
68 | Outdoor dimension | Unit (WxHxD) | mm | 715x482x240 | 810x585x280 | 860x650x310 |
69 | Packing (WxHxD) | mm | 830×530×315 | 940x630x385 | 995x730x445 | |
70 | Outdoor weight | Net | kg | 25 | 38 | 39 |
71 | Gross | kg | 28.5 | 41 | 42 | |
72 | Refrigerant | Type | R410A | R410A | R410A | |
73 | Charge | g | 750 | 1000 | 1260 | |
74 | Refrigerant pipe | Liquid side | mm | 1/4 | 1/4 | 3/8 |
75 | Gas side | mm | 1/2 | 1/2 | 5/8 | |
76 | Max. refrigerant pipe length | m | 15 | 15 | 15 | |
77 | Max. difference in level | m | 5 | 5 | 5 | |
78 | Operation temperature range | ℃ | 16℃-43℃ | 16℃-43℃ | 16℃-43℃ | |
79 | Ambient temperature range | ℃ | 16℃-30℃ | 16℃-30℃ | 16℃-30℃ | |
80 | Application area | m2 | 23 | 35 | 45 | |
81 | Qty’per 20’& 40’&40HQ (with pipe) | Set | 134/280/320 | 86/180/201 | 60/128/148 |
For whole house heating and cooling, it's important to be efficient while also keeping the different zones of your house maintaining optimal air quality. A single Daikin central heating and air system is capable of handling up to 3,000 square feet and also able to customize the comfort level of up to 10 rooms independently. While our systems do control temperature, they can also contribute to refreshing and refining the air throughout your home. In other words, a system from Daikin does so much more than you ever imagined from an HVAC.
❤ Want to learn more about Vcare Wholehouse air conditioner,please contact us by email directly.
