1700W Central Air Conditioning Unit Horizontal Concealed Fan Coil Units

Minimum Order Quantity :	1 unit	Price :	1000USD-5000USD/unit
Packaging Details :	standard pallet packing	Delivery Time :	30-60days
Payment Terms :	L/C, T/T, Western Union	Supply Ability :	50 Containers Per Month

Place of Origin:	CHINA	Brand Name:	VENTECH
Certification:	CE	Model Number:	Horizontal Concealed Fan Coil Units

Detail Information
Product Name:	Horizontal Concealed Fan Coil Units	Price Term:	FOB
Payment Term:	TT	Warranty:	2 Years After Date Of Shipment
Size:	Customized	Mounting:	Floor Standing, Wall / Window Mount, Ceiling Mount, Split, Rooftop Mounted
Sample:	Yes	Busiess Type:	Factory
High Light:	1700W Central Air Conditioning Unit , Concealed Fan Central Air Conditioning Unit

Product Description

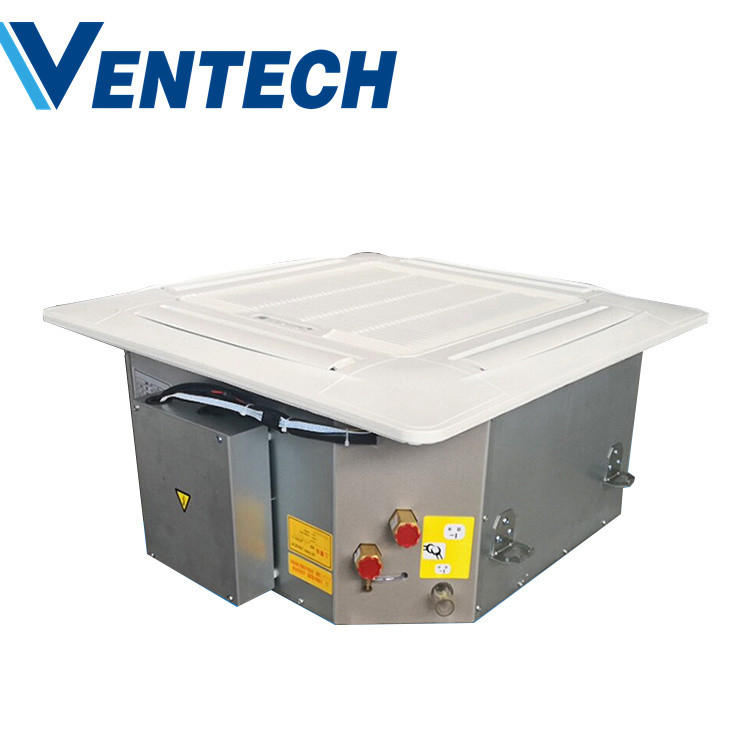

VENTECH(Vcare) central air conditioner kits Ceiling cassette FCU Fan coil Units HVAC system

FEATURES

Corrosion Resistance to the Environment - By using stainless steel frames and covers; and To The Coolant by using exotic materials to prevent corrosion of the coolant circuit. Though VENTECH standard units employ all stainless steel and copper in contact with your coolant, specialized materials are available -- cupro-nickel for use with sea water, plastic piping or stainless steel for deionized water.

Model				FP200KM4	FP300KM4	FP400KM4	FP500KM4	FP600KM4	FP800KM4	FP1000 KM4-Q	FP1200KM4	FP1400KM4
Air volume	Q	H	m3/h	360	510	680	850	1020	1360	1700	2040	2380
		M		250	420	560	650	780	1050	1310	1570	1830
		L		200	350	460	520	600	800	1010	1210	1410
	Z	H	m3/h	340	510	680	850	1020	1360	1700	2040	2380
		M		280	390	520	650	785	1030	1380	1530	1980
		L		230	300	400	500	605	860	1060	1170	1650
Cooling capacity	Q	H	W	2000	2710	3620	4530	5440	7200	9100	10500	12500
		M		1700	2410	3100	3830	4485	6000	7050	8560	10500
		L		1500	2140	2750	3360	3500	4500	5500	6710	8450
	Z	H	W	1750	2620	3500	4370	5400	7000	8750	10500	12150
		M		1410	2250	2920	3645	4440	5890	7340	8800	10130
		L		1020	1860	2430	3040	3745	4900	6110	7260	8450
Heating capacity	Q	H	W	3000	4070	5440	6800	8160	10800	13700	16000	18600
		M		2810	3520	4650	5750	6700	9350	10600	13700	15260
		L		2480	3150	4130	5100	5200	7690	8300	11200	12700
	Z	H	W	2770	4130	5250	6750	8100	10500	13120	15730	17500
		M		1990	3010	4370	5460	6450	8750	10940	12530	14580
		L		1310	2530	3645	4370	5190	7290	8990	10920	12150
Noise level	Q	≤dB(A)	≤dB(A)	37	39	41	43	45	46	48	50	52
Noise level	Z	≤dB(A)	≤dB(A)	37	39	41	43	45	46	47	50	52
Power source		V/Ph/Hz	V/Ph/Hz	220-240V/1/50Hz
Motor	Q	Input	W	46	52	70	80	93	130	150	231	268
Motor	Z	Input	W	$32	36	36	60	66	90	124	180	225
Heat exchanger	Type			Copper pipe with aluminum fins
	Q cooling	Water flow	m3/h	0.31	0.48	0.65	0.81	0.98	1.28	1.65	1.99	2.26
	Q cooling	WPD	kPa	10	18	22	28	37	35	30	35	50
	Q heating	Water flow	m3/h	0.31	0.48	0.65	0.81	0.98	1.28	1.65	1.99	2.26
	Q heating	WPD	kPa	10	18	22	28	37	35	30	35	50
	Z cooling	Water flow	m3/h	0.3	0.46	0.63	0.79	0.96	1 26	1.63	1.97	2.24
	Z cooling	WPD	kPa	30	30	30	30	40	40	40	40	50
	Z heating	Water flow	m3/h	0.3	0. 46	0.63	0.79	0.96	1.26	1.63	1.97	2. 24
	Z heating	WPD	kPa	30	30	30	30	40	40	40	40	50
Max working pressure			MPa	1.6	1.6	1.6	1.6	1.6	1.6	1.6	1.6	1.6
Dimension	Q	Length	mm	650	650	650	850	850	850	1050	1050	1050
	Z	Length	mm	620	620	790	790	1040	1140	1140	1140	1140
	Q	Width	mm	650	650	650	850	850	850	1050	1050	1050
	Z	Width	mm	620	620	790	790	790	790	990	990	990
	Q	Height	mm	278	278	318	318	318	318	318	318	318
	Z	Height	mm	430	430	430	430	430	430	430	430	430
Unit net weight	Q		kg	26	26	28	34	34	36	50	50	50
Unit net weight	Z		kg	27	27	32	32	37	39	49	49	49

❤ Want to learn more about Vcare Wholehouse air conditioner,please contact us by email directly.

Email:karen@chinaventech.com

Tel:0086 13620119598
