Programmable Thermostat Central Ac Unit Fcu Fan Coil Unit

Minimum Order Quantity :	1 unit	Price :	1000USD-5000USD/unit
Packaging Details :	standard pallet packing	Delivery Time :	30-60days
Payment Terms :	L/C, T/T, Western Union	Supply Ability :	50 Containers Per Month

Place of Origin:	CHINA	Brand Name:	VENTECH
Certification:	CE	Model Number:	Horizontal Concealed Fan Coil Units

Detail Information
Product Name:	Horizontal Concealed Fan Coil Units	Working Pressure:	CE
Working Temperature:	Different Working Pressure	Retun Air:	DB 27℃/WB 19.5℃
Model:	Rooftop Package Unit	Lead Time:	30 Days After Receiving Prepayment
Warranty:	2 Years After Date Of Shipment	Trademark:	VENTECH
High Light:	Programmable Thermostat Central Ac Unit , Fcu Central Ac Unit , Fcu Fan Coil Unit

Product Description

Air conditioning unit central air conditioner how it works Horizontal Concealed Fan Coil Units

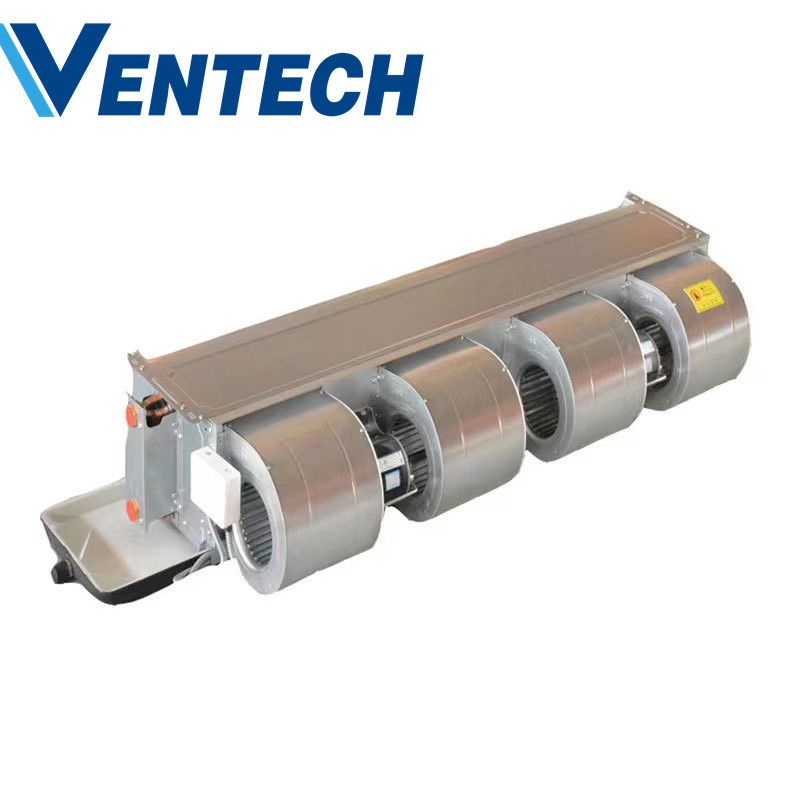

VENTECH(Vcare) Air Conditioning Unit Central Air Conditioner Horizontal Concealed Fan Coil Units

Horizontal Concealed FCU specification table				Vertical coil three pipes system
Model FP WA-3				200	300	400	500	600	700	800	1000	1200	1400
Air volume	H		m3/h	340	510	680	850	1020	1200	1360	1700	2040	2380
	M			280	380	515	660	705	910	1040	1280	1560	1800
	L			1B0	260	340	430	530	610	710	860	1060	1190
Cooling capacity	H		W	2020	3010	3700	4560	5600	6400	7600	9000	10800	12600
	M			1683	2742	3000	3716	4424	5630	6435	7470	9296	10623
	L			1561	2293	2479	2921	3793	4905	5606	7200	8543	8820
Heating capacity	H		W	3500	5300	6700	8200	10100	10940	13500	15000	18900	20000
	M			2526	3533	5153	5954	7099	8057	9906	11560	15163	18600
	L			1682	2321	3449	4258	4833	S558	6774	7500	10085	14240
Motor	Input power(H)	Normal ESP (12Pa)	W	37	52	62	76	96	113	134	152	189	228
		High ESP (30Pa)		44	69	72	87	108	134	156	174	212	253
		Super High ESP (50Pa)		49	66	84	100	118	158	174	210	250	300
Heat exchanger (3-pipe)	Cooling/ Heating	Water flow	m3/h	0.367	0.517	0.638	0 796	0.978	1.128	1.371	1.516	1 822	2.152
Heat exchanger (3-pipe)	Cooling/ Heating	Water drop pressure	kPa	17	22	18	20	30	20	30	30	30	40
Noise	H	Normal ESP (12Pa)	dB(A)	≤37	≤39	≤41	≤43	≤45	≤47	≤46	≤48	≤50	≤52
		High ESP (30Pa)		≤40	≤42	≤44	≤46	≤47	≤49	≤48	≤50	≤52	≤54
		Super High ESP (50Pa)		≤42	≤44	≤46	≤47	≤49	≤51	≤50	≤52	≤54	≤56
Dimension	Length		mm	655	785	885	945	1065	1185	1405	1525	1725	1925
	Width			496	466	466	466	466	466	466	466	466	466
	Height			243	243	243	243	243	243	243	243	243	243
Unit weight	No return air box		KG	12	14	16	17	18	19	26	29	32	35

*Cold water cooling condition: return air :DB 27℃/WB 19.5℃; fresh air DB35℃/WB28℃;cold water inlet/outlet 7℃/12℃.

*Heat water cooling condition: return air :DB 15℃/fresh air DB 7℃;inlet/outlet water: 60℃/50℃.

*Heating retur air condition: DB 15℃,fresh air:DB 7 ℃/vapor inlet:115℃,pressure:0.2Mpa.

Important Factors for Choosing Central AC

Programmable thermostats
Setting your smart or programmable thermostat at the right temperature can reduce your cooling costs by about 10 percent. The right temperature varies on your comfort level, but start by setting it at 78° F and experiment until you find the sweet spot. You’ll save about 3 percent on your utility bill for every degree you raise the set temperature for your central air, according to the Department of Energy. And keep in mind that using a box or ceiling fan, which costs little to run, can make you feel 3° F to 4° F cooler.

❤ Want to learn more about Vcare Wholehouse air onditioner,please contact us by email directly. Email:karen@chinaventech.com Tel:0086 13620119598
