Air Flow 12000m3/H 6 Ton Central Air Unit Dual Refrigeration System
Contact Person : Daisy
Phone Number : 86-13425728677
WhatsApp : +8613425728677
Minimum Order Quantity : | 1 unit | Price : | 1000USD-5000USD/unit |
---|---|---|---|
Packaging Details : | standard pallet packing | Delivery Time : | 30-60days |
Payment Terms : | L/C, T/T, Western Union | Supply Ability : | 50 Containers Per Month |
Place of Origin: | CHINA | Brand Name: | VENTECH |
---|---|---|---|
Certification: | CE | Model Number: | VH Series |
Detail Information |
|||
Product Name: | Fan Coil Unit | Cooling Capacity: | 27.5~128.4kw |
---|---|---|---|
Heating Capacity: | 30.2~141.2kw | Sample: | Yes(in Charge) |
Package: | Pallet Packing | Certificate: | CE |
Businesstype: | Manufacturer | Material: | Best |
Product Description

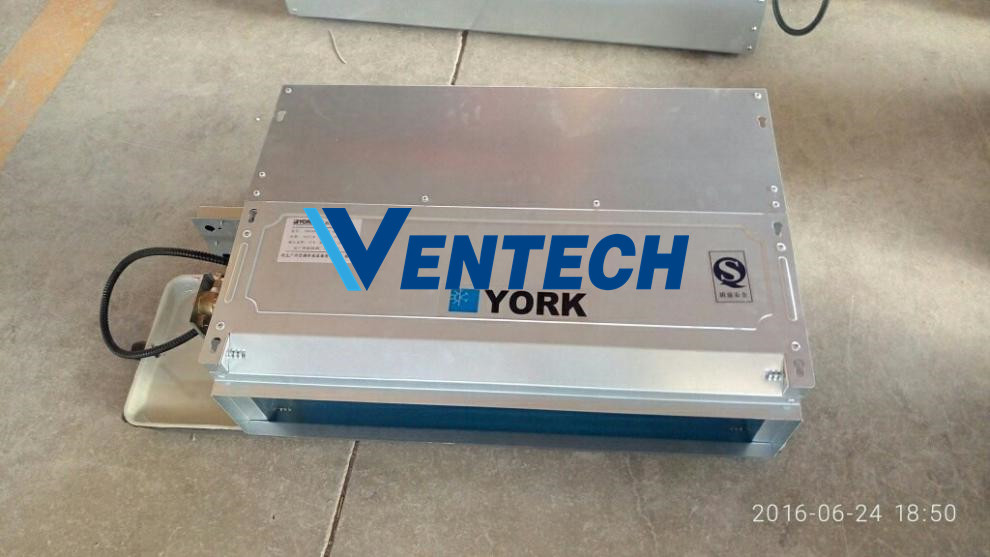

VENTECH(Vcare) Package FCU--Horizontial packag
VWG horizontal unit H series data | |||||||||||||||
Model | Air flow (m3/h) |
Cooling(kW) | Heating(kW) | ESP (Pa) | Motor power(kW) | ||||||||||
4-row | 6-row | 4-row | 6-row | 4-row | 6-row | ||||||||||
Return air | Fresh air | Return air | Fresh air | Return air | Fresh air | Return air | Fresh air | I | II | I | II | I | II | ||
VWG050H | 5000 | 29.0 | 64.2 | 38.5 | 83.2 | 43.2 | 71.9 | 57.3 | 94.8 | 150 | 300 | 1.1 | 1.1 | 1.1 | 1.5 |
VWG060H | 6000 | 35.5 | 70.9 | 47.0 | 96.5 | 52.9 | 79.4 | 70.0 | 110.0 | 160 | 300 | 1.5 | 1.5 | 1.5 | 2.2 |
VWG070H | 7000 | 43.0 | 87.3 | 56.1 | 115.8 | 64.1 | 97.8 | 83.6 | 132.0 | 170 | 350 | 1.5 | 2.2 | 1.5 | 2.2 |
VWG080H | 8000 | 50.3 | 102.2 | 65.2 | 129.8 | 74.9 | 114.5 | 97.1 | 148.0 | 180 | 350 | 1.5 | 2.2 | 1.5 | 2.2 |
VWG090H | 9000 | 55.8 | 113.8 | 72.5 | 155.0 | 83.1 | 127.5 | 108.0 | 176.7 | 190 | 350 | 2.2 | 2.2 | 2.2 | 3.0 |
VWG100H | 1000 | 60.0 | 130.0 | 77.5 | 169.3 | 89.4 | 145.6 | 115.5 | 193.0 | 200 | 400 | 2.2 | 3.0 | 2.2 | 3.0 |
VWG120H | 12000 | 74.3 | 151.8 | 94.5 | 203.2 | 110.7 | 170.0 | 140.8 | 231.6 | 210 | 400 | 3.0 | 4.0 | 3.0 | 4.0 |
VWG140H | 14000 | 86.0 | 179.5 | 110.9 | 241.2 | 128.1 | 201.0 | 165.2 | 275.0 | 220 | 400 | 3.0 | 4.0 | 3.0 | 4.0 |
VWG160H | 16000 | 100.7 | 211.7 | 130.3 | 266.1 | 150.0 | 237.1 | 194.1 | 303.4 | 230 | 450 | 4.0 | 5.5 | 4.0 | 5.5 |
VWG180H | 18000 | 115.8 | 240.3 | 146.6 | 302.0 | 172.5 | 269.1 | 218.4 | 344.3 | 240 | 450 | 4.0 | 5.5 | 5.5 | 7.5 |
VWG200H | 20000 | 131.6 | 269.3 | 164.8 | 326.7 | 196.1 | 301.6 | 245.6 | 372.4 | 250 | 450 | 5.5 | 7.5 | 5.5 | 7.5 |
VWG220H | 22000 | 136.3 | 277.0 | 177.3 | 338.6 | 203.1 | 310.2 | 264.2 | 386.0 | 260 | 500 | 5.5 | 7.5 | 7.5 | 11.0 |
VWG2S0H | 25000 | 157.3 | 330.8 | 202.5 | 407.0 | 234.4 | 370.5 | 301.7 | 464.0 | 270 | 500 | 7.5 | 11.0 | 7.5 | 11.0 |
VWG280H | 28000 | 176.1 | 359.1 | 226.8 | 485.2 | 262.4 | 402.2 | 337.9 | 553.1 | 280 | 500 | 7.5 | 11.0 | 7.5 | 11.0 |
VWG300H | 30000 | 191.6 | 390.0 | 245.8 | 509.2 | 285.5 | 436.8 | 366.2 | 580.8 | 290 | 550 | 11.0 | 11.0 | 11.0 | 11.0 |
VWG350H | 36000 | 223.6 | 438.5 | 286.7 | 596.6 | 333.2 | 491.1 | 427.2 | 680.1 | 310 | 550 | 11.0 | 15.0 | 11.0 | 15.0 |
VWG400H | 40000 | 255.5 | 501.2 | 327.6 | 677.3 | 380.7 | 561.3 | 488.1 | 772.1 | 330 | 600 | 15.0 | 15.0 | 15.0 | 18.5 |
VWG450H | 46000 | 276.6 | 577.0 | 374.5 | 748.5 | 412.1 | 646.2 | 558.0 | 853.3 | 350 | 600 | 7.5x2 | 11x2 | 7.5x2 | 11x2 |
VWG500H | 50000 | 297.5 | 641.2 | 416.2 | 795.8 | 443.3 | 718.1 | 620.1 | 907.2 | 370 | 650 | 7.5x2 | 11x2 | 7.5x2 | 11x2 |
Have your contractor do a load calculation based on a recognized method, such as one in Manual J from the ACCA. The contractor’s evaluation should include whether your ducts need to be resized, sealed, and insulated, or replaced. Remember that an indoor evaporator coil and outdoor condenser must be a matched set from the same brand, or the performance, efficiency, and capacity might not meet expectations.
New systems are 20 to 40 percent more efficient than minimum-efficiency models made even 10 years ago. Costs will vary and can depend on whether you need ductwork installed, and the particular size and configuration of your home.
Air conditioning requirements across the world are increasing at a significant rate. An increase in temperature, heatwaves, and unpredictable weather is one driver for the high demand. An increase in energy efficiency and affordability is the primary demand driver. Individual requirements vary extensively, and manufacturers are innovating rapidly.
To cater to the varied requirements of home-owners, the manufacturers have made available a wide variety of air conditioners.
❤ Want to learn more about Vcare Wholehouse air conditioner,please contact us by email directly.
